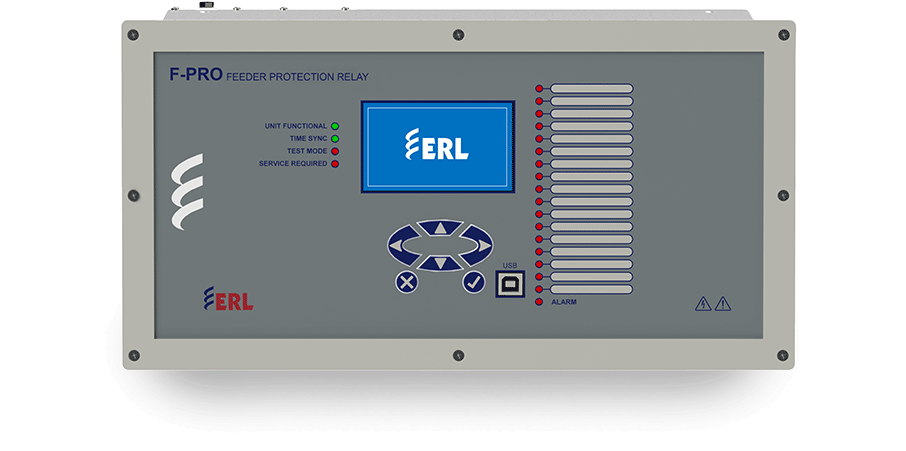

F-PRO 4500 Feeder Protection Relay

F-PRO 4500 Manual F-PRO 4500 Datasheet F-PRO 4500 Configuration Tool Software F-PRO Offliner Release Description F-PRO 4500 Firmware Release Description

Applications

• Current, voltage and frequency elements that meet the requirements of many power automation systems
• Provides control, automation, metering, monitoring, DFR-quality fault oscillography, dynamic swing recording, fault logging, and sequence of event logging with advanced communication features

Features and Benefits

• Protection functions - 27, 59, 24, 47, 59N, 50BF, 50LS, 50/51/67, 50N/51N/67N, 50G/51G/67G, 50SEF/51SEF/67SEF, 46-50/46- 51/67, 60VTS, 60CTS, 79, 81U/81O/81R, 32, 49, 37, 74TCS, THD, I^2t, 25/27/59 (Check Sync)
• Selectable single and 3 pole trip and reclose
• 4 shot recloser with dead line/dead bus control and sync check
• Enhanced user-configurable logic - with ProLogic™ which includes 24 control logic statements
• 8 setting groups with unique Group Logic Control Statements - full Boolean graphics to create logic for setting groups switching based on a combination of given conditions

Flexible Communications

• 100BASE-TX RJ-45 or 100BASE-FX 1300 nm multimode optical with ST style connector

Reduce Installation and Operation Cost

• Substation automation cost – includes IEC 61850 Edition 2 protocol along with optional PRP to display and transfer operational data via LAN/DAN for local HMI and wide area network (WAN) for remote monitoring SCADA
• Engineering, installation and commissioning cost - IEC 61850 GOOSE messages communicate high-speed information between IEDs on the substation LAN/DAN

Easy to Use and Maintain

• Intuitive Windows-based configuration and analysis software
